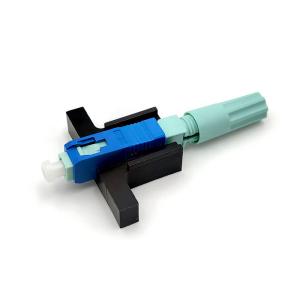

900um 3.0mm Cable SC/UPC Field Assembly Optical Connector

Brand Name : UNIFIBER-OEM

Model Number : Optical Fast Connector, SC Quick Connector

Certification : ROHS

Place of Origin : CHINA

MOQ : 500pcs

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 10000pcs/day

Delivery Time : 3-5days

Packaging Details : blister case

Connector type : SC/APC SC/UPC

Color : Green

Durability : >500 times

Operation Temperature : -40~+75°C

Product : SC Quick Connector,Optical Fast Connector

Applicable for : 0.9mm Tight Buffer Fiber, 2.0mm, 3.0mm Drop Cable

Contact Now

FTTH Field Assembly Connector SC/APC, China Fiber Quick Connector manufactures

This kind of Field Assembly Optical Connector is designed for fast and simple field termination of single fiber, without polishing or epoxy. The Connector is made with precision and high quality Zirconia ferrules and provides a highly reliable connection in most of the network application. The SC type is available with 250/900um buffed fiber, 2.0mm,1.6mm x 2.0mm, 2.0mm x 3.0mm and 3.0mm jacket cable. The universal type connector is also available, which is suitable for all of the 250/900um, 2mm and 3mm, 2.0mmx3.0mm cable diameter.

Features

Reliable, durability over 500 times mating
Easily installed, Quick and easy fiber termination in the field.
Can be intalled and maked repeatedly thus avoiding loss.Factory-installed fiber stub.

Fast connecting and repeat, No special tools needed when installed.
No epoxy and polishing required, No special tools needed when installed.

Applications

FTTH & FTTx;
Broadband, CATV.

Passive Optical Networks

ITEM
Technical Parameters
Applicable for
Drop cable / Indoor cable
0.9mm Tight Buffer Fiber, 2.0mm, 3.0mm Drop Cable
Optical fiber diameter
SM(9/125), MM(50/125, 62.5/125)
125μm ( 657A & 657B )
Tight buffer diameter
250μm
Fiber mode
Single mode
Operation time
About 100s(no fiber cut)
Insert loss
≤ 0.3dB(1310nm & 1550nm)
Return loss
> 50db(PC), > 55db(UPC), > 65db(APC)
Fastening strength of naked fiber
>5 N
Fastening strength of naked fiber holder
>10 N
Tensile strength
>50 N
Using temperature
-40~+75°C
On-line tensile strength (20 N)
IL ≤ 0.5dB RL ≤ 5dB
Mechanical durability (500 times)
IL ≤ 0.5dB RL ≤ 5dB
Drop-off test (drop-off height 4m,once per direction, totally 3 times)
IL ≤ 0.5dB RL ≤ 5dB

900um 3.0mm Cable SC/UPC Field Assembly Optical Connector


Product Tags:

SC/UPC Field Assembly Optical Connector



900um Field Assembly Optical Connector



3.0mm Cable SC Quick Connector


Wholesale 900um 3.0mm Cable SC/UPC Field Assembly Optical Connector from china suppliers

900um 3.0mm Cable SC/UPC Field Assembly Optical Connector Images
