8 Ports SC/APC Adapters IP65 IP66 Fiber Optic Distribution Box

Name: 8 Ports SCAPC Adapters IP65 IP66 Fiber Optic Distribution Box
Brand: UNIFIBER-OEM
Price: 1 USD

Brand Name : UNIFIBER-OEM

Model Number : OTFDB-108A

Certification : ROHS

Place of Origin : CHINA

MOQ : 10pcs

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 1000pcs/day

Delivery Time : 5~7 Business days

Packaging Details : Carton Box

Material : ABS+PC

Protective Level : IP65/IP66

Color : White

Cable Diameter : 12mm

Capacity : 8 core

Application : FTTH FTTB FTTX Network

Contact Now

FTTH compact size termination box for fiber optic distribution 8 ports SC/APC adapters

OTFDB-108A distribution box is a box for fiber terminal distribution in optical fiber transmission and communication network. It can be 12 fibers splicing, protection and distribution. All material meets RoHS.

Application
FTTH access network.
Telecommunication Networks
CATV Networks
Data communications Networks

Features
Material: ABS plastic.
Can accommodate 1x4,1x8 PLC splitter.
Rainfall resistant, IP65 outdoor using.
Can load 12pcs LC, FC, ST, SC … adapters.
Wall mounting and pole mounting application.
2pcs cable entry ports with M20 cable gland (Max. cable diameter 12mm)
12pcs exit ports for FTTH drop cable.

Specification:

Model	FDB-0416
Dimension (ABC)	23012550mm
Max.Capacity	8cores (single fiber)
Cable ports	1 cable in/out, 8 drop cable ports
Cable diameter	In:Φ7-12mm, out:2*φ3mm
Splitter quantity	1x8 steel tube
Adapter quantity	8 SC
Color	black /white
Protection level	IP65/IP66

8 Ports SC/APC Adapters IP65 IP66 Fiber Optic Distribution Box

Product Tags:

fiber optic junction box

optical network terminal box

Wholesale 8 Ports SC/APC Adapters IP65 IP66 Fiber Optic Distribution Box from china suppliers

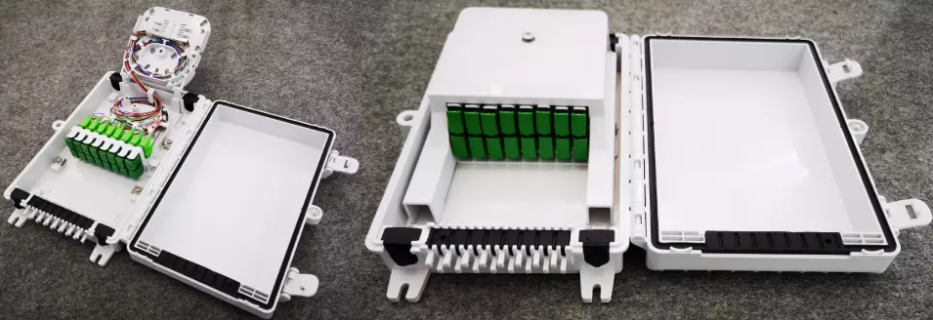

8 Ports SC/APC Adapters IP65 IP66 Fiber Optic Distribution Box Images
