Compact Fiber Optic Splitter 1x8 Rack Mounted 1U 19 Inch Single Mode SC APC Connectors

Name: Compact Fiber Optic Splitter 1x8 Rack Mounted 1U 19 Inch Single Mode SC APC Connectors
Brand: UNIFIBER
Price: 1 USD

Wholesale Compact Fiber Optic Splitter 1x8 Rack Mounted 1U 19 Inch Single Mode SC APC Connectors from china suppliers

Brand Name : UNIFIBER

Model Number : 8WPLCSCA

Certification : ROHS

Place of Origin : CHINA

MOQ : 10pcs

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1000pcs/day

Delivery Time : 5~8 business days

Packaging Details : Individual blister Case or Carton Box

Package Style : ABS box,Mini Steel Tube,LGX Cassette

Configuration Type : 1x2,1x4,1x8,1x16,1x32,1x64

Connector : SC,LC,FC,ST or Customzied

Pigtail Length : Customized

FIber type : G657A1

Wavelength : 1260~1650nm

Contact Now

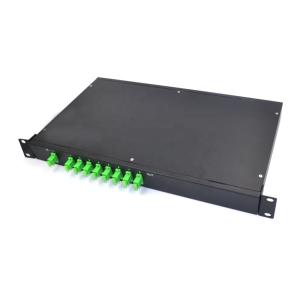

Fiber optic PLC splitter 1x8 Rack mounted 1U 19 inch chasis, pre-loaded with single mode SC APC connectors

Rack mounted PLC splitters are different types including 1x4, 1x8, 1x16, 1x32 ,1x64 PLC Splitters and 2x4, 2x8, 2x16, 2x32 etc types. All with 1U 19" rack mount enclosures. Our Rack mounted 1U PLC splitters meet with Telcordia standards and with very competitive prices.

FEATURES

Low Insertion loss and PDL
Compact Design
Good channel-to-channel uniformity
Wide Operating Wavelength: From 1260nm to 1650nm
High Reliability and Stability

APPLICATION

Fiber to The Point (FTTX)
Fiber to The Home (FTTH)
Passive optical networks(PON, GEPON)

Specification

Parameters	1×2	1×4	1×8	1×16	1×32	1×64	1×128
Operating wavelength	1260 ~1650nm
Insertion Loss (dB)(P/S Grade)	3.6/4.0	7.2/7.4	10.2/10.5	13.5/13.7	16.2/16.7	20.5/21	23.8/24.5
uniformity (dB)	0.4	0.6	0.8	1.0	1.2	1.8	2.0
PDL (dB)	0.2	0.2	0.3	0.3	0.3	0.4	0.5
Return Loss (dB)	≥55
Directivity (dB)	≥55
TDL(dB)	0.5
Operating/Storage Temperature (℃)	-40~85

Specifications (2XN):

Parameters	2×2	2×4	2×8	2×16	2×32	2×64		2×128
Operating wavelength	1260 ~1650nm
Insertion Loss (dB)(P/S Grade)	3.8/4.2	7.5/7.8	10.7/11	14/14.2	17/17.5		21/21.5	25/25.5
uniformity (dB)	0.6	1.0	1.2	1.5	1.8		2.0	2.5
PDL (dB)	0.2	0.2	0.3	0.3	0.3		0.4	0.4
Return Loss (dB)	≥55
Directivity (dB)	≥55
TDL (dB)	0.5
Operating/Storage Temperature (℃)	-40~85
Note: All the data above does not include connector

Compact Fiber Optic Splitter 1x8 Rack Mounted 1U 19 Inch Single Mode SC APC Connectors
