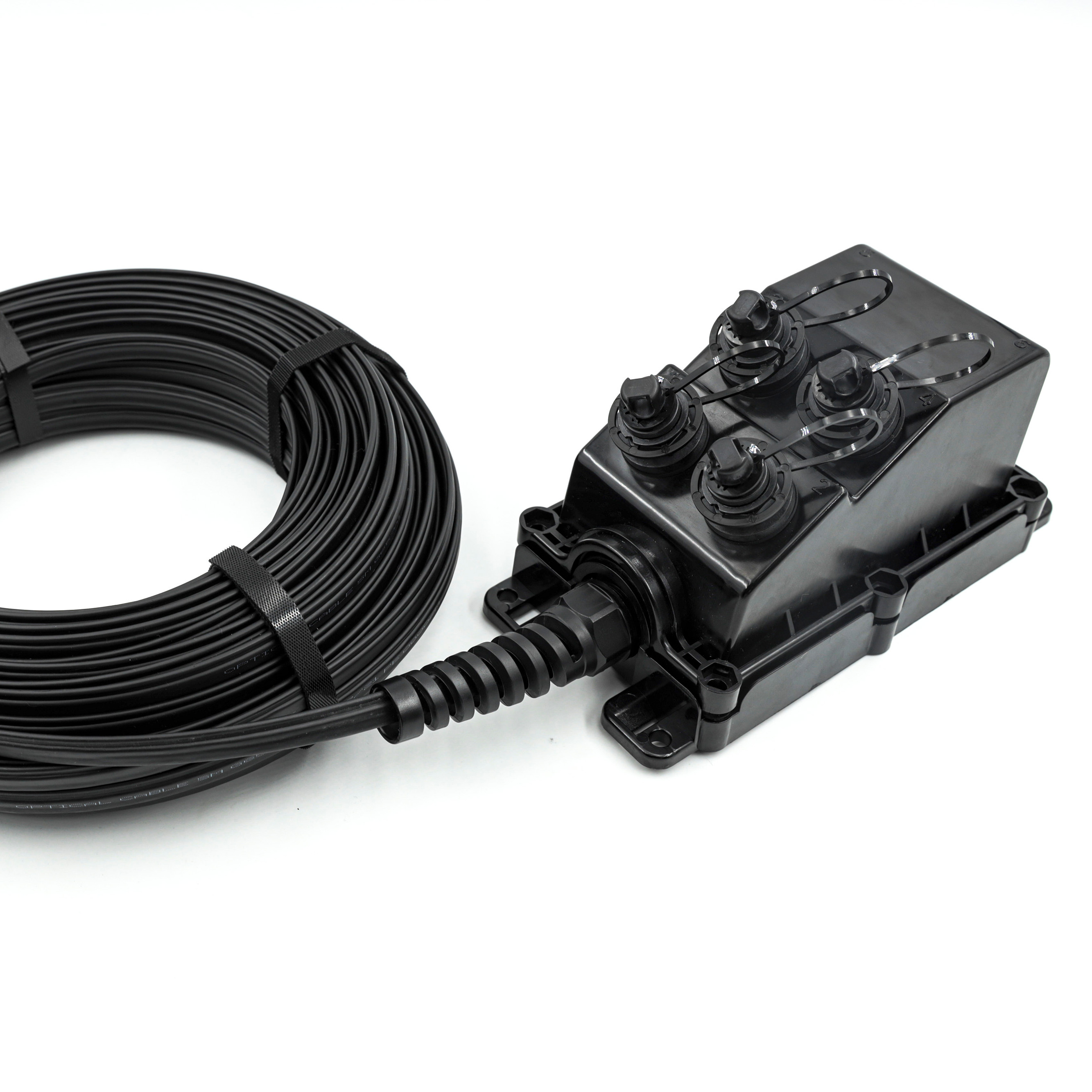

FTTx Fiber Optic Multiport Service Terminal(MST) 4/8/12 Ports With Optitap Pre-connectorized Drop Cable 150m

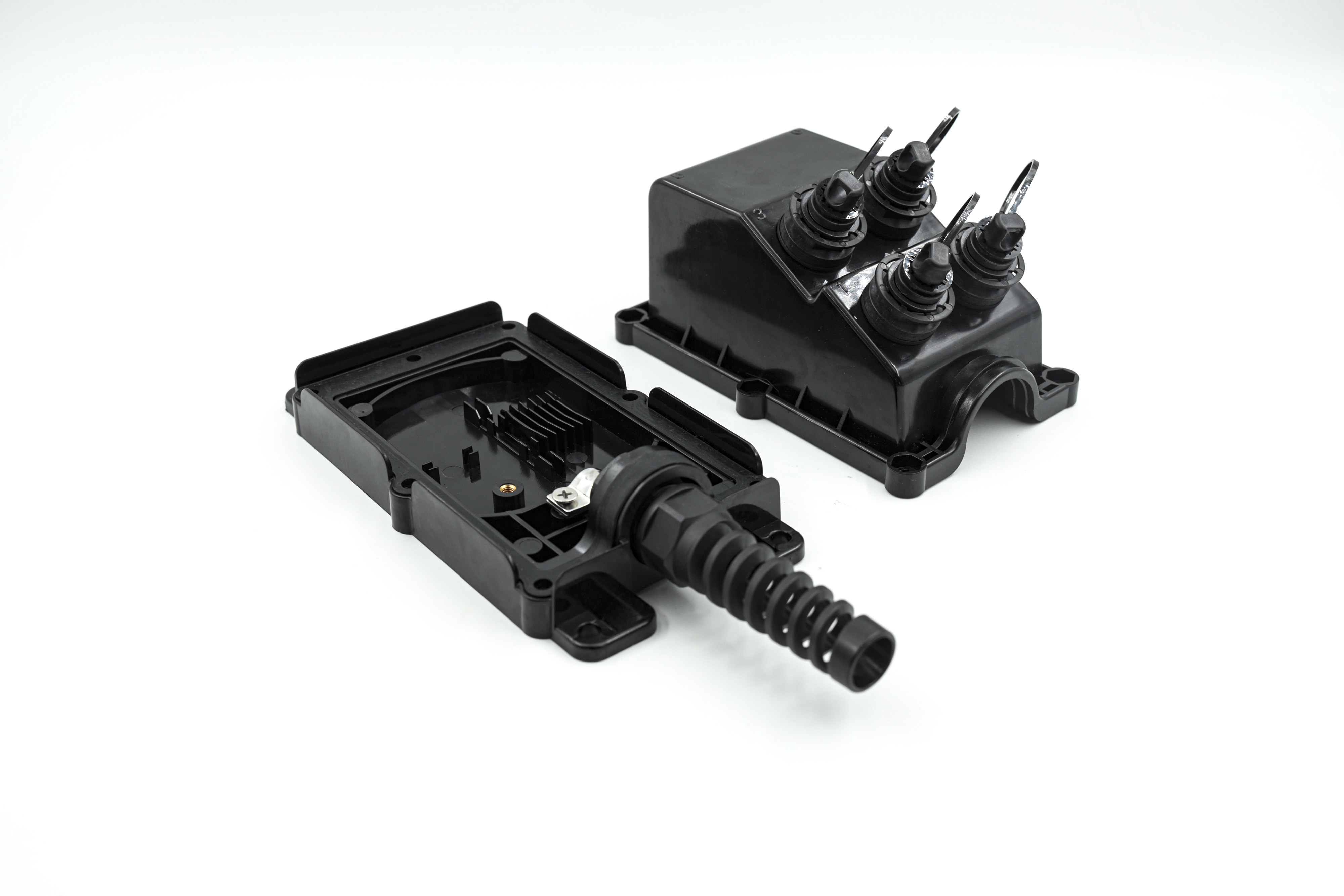

FTTX Enclosure is a new economic fiber distributed solution for outdoor use. Compare traditional products, FTTX Enclosure is easy to operate and has high compatibility.It can be used for wall-mounting, aerial installation or holding pole installation, based on different situation. FTTX Enclosure not only used in FTTH field, but also used in FTTA or other harsh environment.This Multiport Service Terminal (MST) Always Come as 4/8/12 Ports, it can load with 1x4 or 1x8 mini steel tube PLC splitter inside the box and load with Optitap/ODVA/MINI SC or other outside hardened connectors based on specific requirements, Customer can use as fiberhub to connect with feeder cable and drop cable.
Application:
Outdoor harsh environment
FTTH field
FTTA field
Trunk cable connecting
Prospecting or military communication
Features:
From 2 to 12 ports for single or multifiber harsh connectors.
IP68 waterproof rating.
Available with PLC or splice sleeve for fiber divide .
High compatibility: can be assembled ODVA, H connector(OptiTap compatible), Mini SC, ODC, PTLC, PTMPO or power adapter.
Wall-mounting, aerial installation or holding pole installation.
Specification:
| |
| Dimensions(LxWxH) | 200x120x85mm(4Core) | 280x120x85mm(8Core) |
| Ingress Protection | IP68 |
| Working Temperature | -40~85℃ |
| Cable Strength Member | Armoured or Non-armoured |
| Cable Type | Hybrid or non-hybrid |
| Round Cable OD | 5.0mm to 14.0mm |
| Flat Cable Dimension | 4.6x8.9mm |
| Cable Jacket Material | LSZH,PE or TPU |
| Bending Radius | 20D |
| Cable Crush Resistance | 200N/cm long term |
| Tensile Strength | 1200N long term |
| UV Resistance | ISO 4892-3 |
| Fire Protection Rating | UL94-V0 |
| Number of PLC | 1to 2pcs |
| Number of Fusion Protection Steeve | 1to 24pcs |
